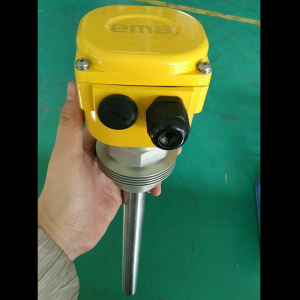

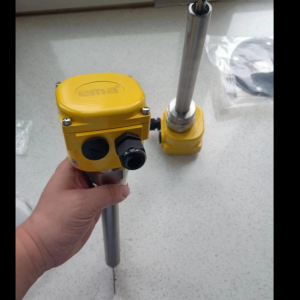

SRP50/SRT50伊瑪EMA軸保護型阻旋開關

伊瑪SRP50 SRT50是軸封加長的，更好的保護旋轉桿，油封也會做的更好。主要型號有;

SRP50CC02004,SRT50CC02004 ,SRP50CD02004,SRT50CD02004

SRP50CA02004,SRT50CA02004 ,SRP50CB02004,SRT50BD02004

SRP50CC04004,SRT50CC04004 ,SRP50CD04004,SRT50CD04004

SRP50CA04004,SRT50CA04004 ,SRP50CB04004,SRT50BD04004

SRP50CC06004,SRT50CC06004 ,SRP50CD06004,SRT50CD06004

SRP50CA06004,SRT50CA06004 ,SRP50CB06004,SRT50BD06004

SRP50CC08004,SRT50CC08004 ,SRP50CD08004,SRT50CD08004

SRP50CA08004,SRT50CA08004 ,SRP50CB08004,SRT50BD08004

SRP50CC10004,SRT50CC10004 ,SRP50CD10004,SRT50CD10004

SRP50CA10004,SRT50CA10004 ,SRP50CB10004,SRT50BD10004

SRP50CC12004,SRT50CC12004 ,SRP50CD12004,SRT50CD12004

SRP50CA12004,SRT50CA12004 ,SRP50CB12004,SRT50BD12004

EMA SRP50/SPT50阻旋開關的安裝

阻旋式料位開關通常有以下五種固定形式:

1.普通安裝:軸套螺紋直接安裝在容器壁相同規格螺紋上，旋緊即可。

2.螺母安裝:在容器壁上開孔(50mm

3.法蘭安裝:在容器壁上開孔(78mm

4.鑲件安裝:在容器壁上開孔(N=58mm,N為孔徑)，再把軸套螺紋連接到鑲件相同規格螺紋上，鑲件再焊接到容器壁上即可。

5.轉換頭安裝:螺紋連接到轉換頭，轉換頭再連接到容器壁上(轉換頭螺紋規格可以根據用戶需求訂制)。

伊瑪SRP50 SRT50阻旋開關316材質的型號為：

SRP50CC02006,SRT50CC02006 ,SRP50CD02006,SRT50CD02006

SRP50CA02006,SRT50CA02006 ,SRP50CB02006,SRT50BD02006

SRP50CC04006,SRT50CC04006 ,SRP50CD04006,SRT50CD04006

SRP50CA04006,SRT50CA04006 ,SRP50CB04006,SRT50BD04006

SRP50CC06006,SRT50CC06006 ,SRP50CD06006,SRT50CD06006

SRP50CA06006,SRT50CA06006 ,SRP50CB06006,SRT50BD06006

SRP50CC08006,SRT50CC08006 ,SRP50CD08006,SRT50CD08006

SRP50CA08006,SRT50CA08006 ,SRP50CB08006,SRT50BD08006

SRP50CC10006,SRT50CC10006 ,SRP50CD10006,SRT50CD10006

SRP50CA10006,SRT50CA10006 ,SRP50CB10006,SRT50BD10006

SRP50CC12006,SRT50CC12006 ,SRP50CD12006,SRT50CD12006

SRP50CA12006,SRT50CA12006 ,SRP50CB12006,SRT50BD12006

伊瑪EMA  SRP50阻旋開關注意事項:

1.續接型大于1200mm，請選用鋼索電纜線，適用于垂直安裝

2.鋼索型可適用于:標準續接型、高溫續接型、超高溫續接型

3.超高溫請選用金屬殼體

4.確認連接軸/聯軸器/葉片的材質選擇一致

5.確定電壓24VAC，110-120VAC或220VAC

6.注意原料比重

7.確認葉片尺寸是否可插入法蘭片入口或桶槽壁開孔

8.總長度變化在ェ5mm以?xún)?nèi)為正常范圍

9.續接型的訂貨內含主體和聯軸器，請?jiān)龠x購葉片、連接桿(選配)和配件(選配)
