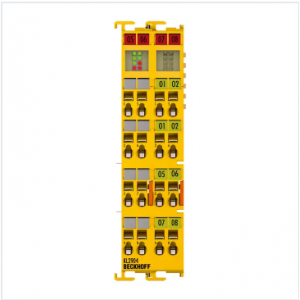

| Design form |
compact terminal housing with signal LEDs |
| Material |
polycarbonate |
| Dimensions (W x H x D) |
24 mm x 100 mm x 68 mm |
| Installation |
on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of |
double slot and key connection |
| Marking |
labeling of the BZxxx series |
| Wiring |
solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver |
| Connection cross-section |
s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm² |
| Connection cross-section AWG |
s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16 |
| Stripping length |
8…9 mm |
| Current load power contacts |
Imax: 10 A |
