With only two major components, the PSS 4 split seal makes installation quick and easy without requiring equipment tear down. The pre-assembled semi-cartridge rotating and stationary halves eliminate equipment measurements and handling of small intricate components, including seal faces and gaskets. This innovative design with enhanced pressure capability makes the PSS 4 ideal for nearly all industries including pulp and paper, waste water treatment, power generation and light chemical.
Features and Benefits
• Fully split design installs around the shaft, outside of the seal chamber, eliminating the need to dismantle the equipment for seal installation.
• Easy installation made even easier with fully pre-assembled, unitized component, semi-cartridge segments.
• All internal gaskets are mechanically held in place,eliminating the need for adhesives.
• Exclusive 3D Key technology assures optimum seal face alignment in both axial and radial directions, reducing joint leakage and installation time.

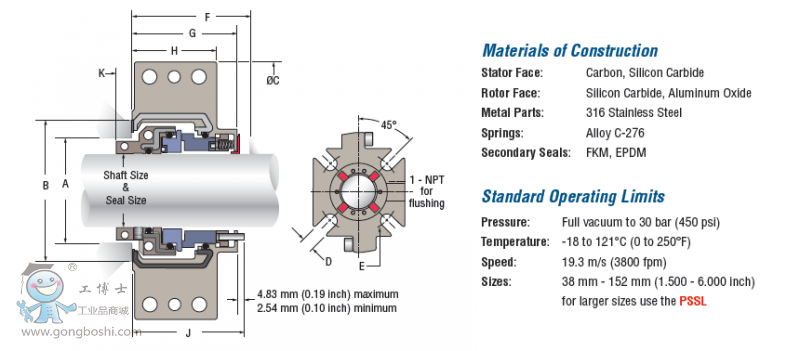

OPERATING PARAMETERS
Pressure:Full vacuum to 450 psig (30 bar),
Temperature:0° to 250° F (-18° to 121° C),
Speed: Up to 3800 rpm
