TESCOM 74-3800系列 減壓調壓閥-艾默生EMERSON

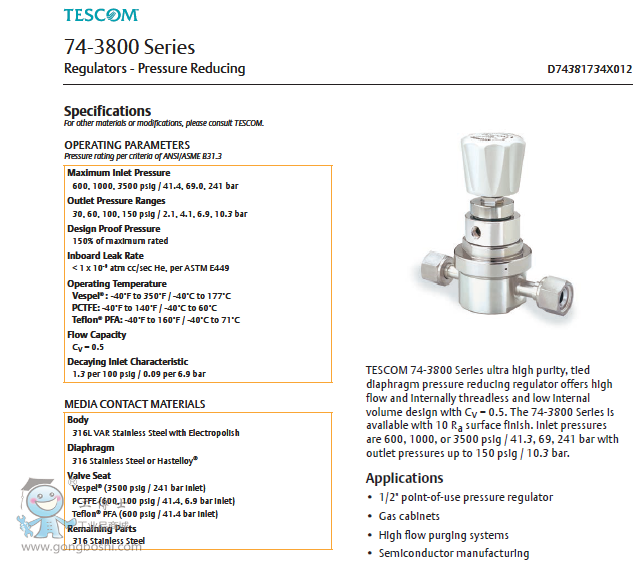

TESCOM 74-3800 Series ultra high purity, tied diaphragm pressure reducing regulator offers high flow and internally threadless and low internal volume design with Cv = 0.5. The 74-3800 Series is available with 10 Ra surface finish. Inlet pressures are 600, 1000, or 3500 psig / 41.3, 69, 241 bar with outlet pressures up to 150 psig / 10.3 bar.
Applications
• 1/2" point-of-use pressure regulator
• Gas cabinets
• High flow purging systems
• Semiconductor manufacturing
Features and Benefits
• Internally springless and threadless design
• Metal-to-metal diaphragm to body seal for high leak integrity
• Smooth unobstructed flow path allows for complete purging
• Positive shut-off seal, tied diaphragm design with positionable captured vent bonnet
• Hastelloy® trim option is available
